DYCO WS1.5 Commercial Systems

ILLUSTRATION &
PART NUMBER
DESCRIPTION SUGG. RETAIL


PAGE 2 - 14


DYCO WS1.5 Commercial Systems

WS1.5EE CONTROL

DYCO WS1.5EE 1-1/2" Commercial Systems


Includes DYCO WS1.5EE 1-1/2" control valve with commercial distributors, gravel bed, and highcapacity resin. Commercial brine tank(s) include(s) a DYCO 454 Hi-Flow Safety Valve, air check, overflow elbow, 5" brine well and cap.

WS1.5EE AUTOMATIC TIMECLOCK SYSTEMS


WS1.5EET-110-C2441
WS1.5EET-120-C2441
WS1.5EET-150-C2450
WS1.5EET-210-C2450
WS1.5EET-300-C3048
110,000 Grain System
120,000 Grain System
150,000 Grain System
210,000 Grain System
300,000 Grain System
$2,504.00
$2,504.00
$2,694.00
$3,017.00
$3,472.00

PLEASE CALL US TO PLACE AN

ORDER FOR THIS PRODUCT

FOR WS1.5EE AUTOMATIC METER SYSTEMS ADD


CL-15-EM
Meter Assembly MxF NPT
$542.00

DYCO WS1.5EE 1.5" Twin Alternating Systems

Includes two base DYCO Systems from above, one 1-1/2" Stainless Steel Electronic Meter, one DYCO 1-1/2" MAV (Motorized Alternating Valve)and one Commercial brine tank equipped as follows, DYCO 454 Hi-Flow Safety Valve, air check, overflow elbow, 5" brine well and cap.


WS1.5EE-TA-110-C2441
WS1.5EE-TA-120-C2441
WS1.5EE-TA-150-C2450
WS1.5EE-TA-210-C2450
WS1.5EE-TA-300-C3048
110,000 Grain System
120,000 Grain System
150,000 Grain System
210,000 Grain System
300,000 Grain System
$3,889.00
$3,889.00
$4,069.00
$4,567.00
$5,352.00

Product Features

• 1.5" top mount control valve suited for mid-size commercial/industrial applications
• Lead free brass valve body
• Economical stainless steel optional meter assembly
• Service flow rate of 60 gpm, backwash 50 gpm
• Solid state microprocessor with easy access front panel settings
• Front panel display for time of day, days until next regeneration, volume remaining, current
flow rate and total volume used (Totalizer)
• Methods to initiate regeneration; meter immediate, meter delayed, time clock delayed
• Optional double backwash feature offers optimum regeneration, cleaning ability and
efficiency
• Fully adjustable cycle times with 6-cycle control delivers controlled backwash, downflow
brining/slow rinse, second backwash, fast rinse, refill and downflow service
• Coin Cell Lithium battery back-up with a 8 hour carry over
• 12-volt output AC Adapter provides safe and easy installation
• Post treated water regenerant refill
• Reliable and proven DC drive

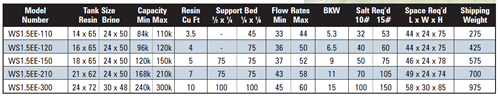

CLICK ON THE IMAGE BELOW TO ENLARGE
