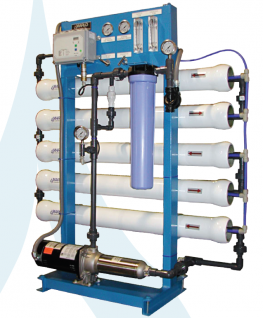

DYCO Low Pressure Reverse Osmosis

Operating Parameters

• Operating Pressure: 125-150 psig
• Nominal Recovery: 65–75%
• Nominal Salt Rejection: 95–99%
• Operating Temperature: 35–85° F
• Design Temperature: 77° F
• Minimum Inlet Pressure: 30 psig
• Inlet Water Quality: Chlorine-Free/Softened
• Electrical Requirements: 220 VAC, 1-phase, 60 Hz.

Materials of Construction

• Frame: Painted carbon steel
• Membrane Elements: Thin-film Composite (TFC)
• Membrane Housings: FRP
• Piping: Sch 80 PVC
• Tubing: Polyethylene

Pump and Motor

• Pump: 304SS Multi-Stage Centrifugal
• Motor: ODP, 220 VAC, 1-phase, 60 Hz.

Standard Features

• 5-micron sediment pre-filter housing
• Automatic inlet shut-off valve
• Solid-state digital controller
• Product water conductivity monitor
• Operating pressure gauges
• Product and concentrate flow meters
• Concentrate and recycle flow control valves
• Low inlet pressure switch with shutdown alarm

Optional Equipment Available

• Pressurized storage vessels
• Atmospheric storage tanks with level control
and repressurization pump
• Water softeners and carbon filter pretreatment
• Skid mounted packages with pre/post
treatment equipment
